09302 - DM1100 - Drilling Machines

DM1100
09302 - DM1100 - Drilling Machines
Where To Buy »
DM1100 - DM1100 by Reed Manufacturing
DM1100
  • DM1100
Catalog No.: DM1100
Item Code: 09302
Where To Buy »
Specifications
Size (in)
3/4" - 1" AWWA
Gross Weight[1]
lbs
53.0
kg
24.1
[1]

Drilling Machine unit alone weighs 13.2 lbs / 6.0 kg

Features

  • Drilling machines cut or drill through pressurized water mains of cast iron, ductile iron, C900 PVC or PE via a corporation stop inserted into a service saddle.
  • This drilling machine kit includes the base unit, along with corporation adapters and drill bit adapters designed for ¾ inch and 1 inch flare or 110 compression outlet threads.
  • Drilling machines feature a quick-clamp feed mechanism that needs minimal adjustment.
  • Machine requires D Series Drill Bits, PVC/PE Shell Cutters or Carbide-Tipped Hole Cutters, as the job dictates.



Contents

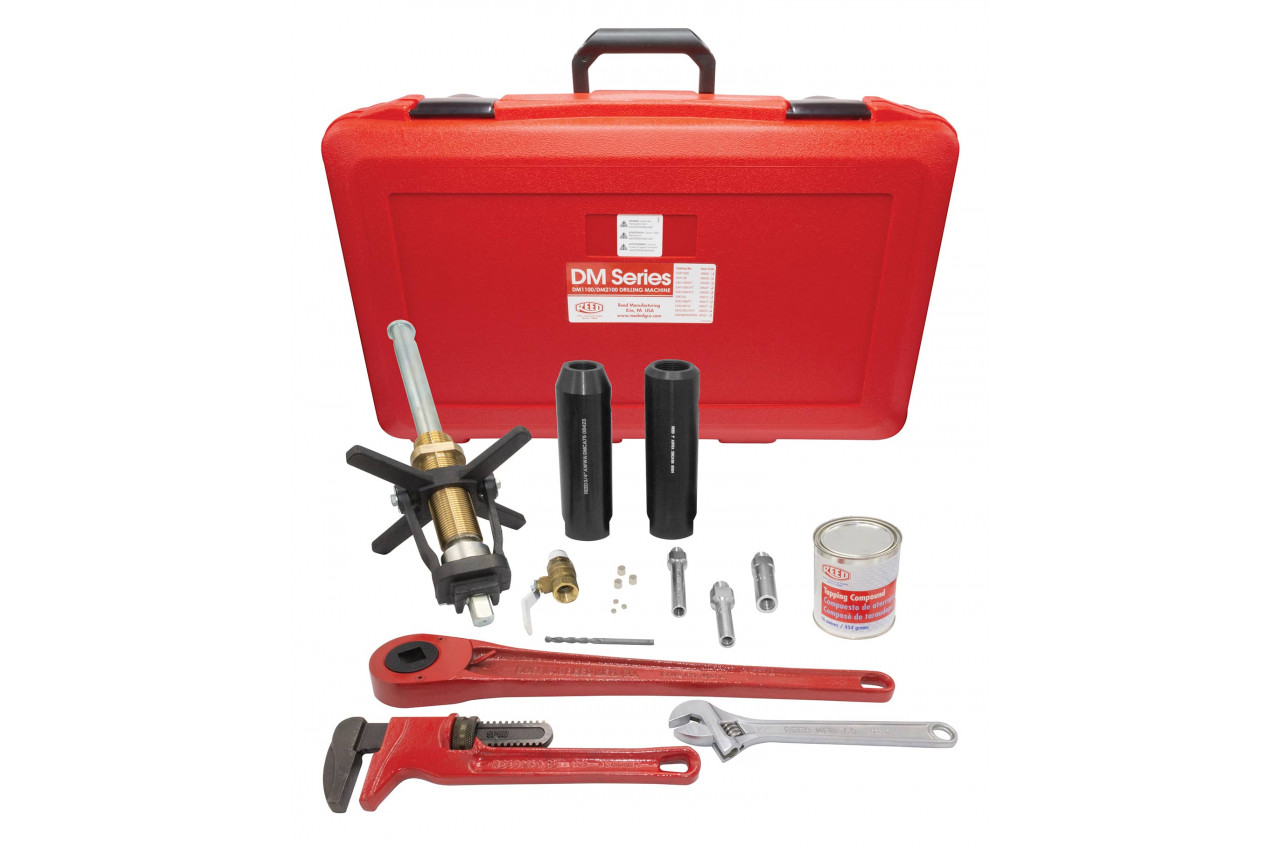

09302 DM1100 Drilling Machine Kit includes:


09301   DM2100B BASE MACHINE in Carrying Case
08423   DMCA75 3/4" CORPORATION ADAPTER
08424   DMCA100 1" CORPORATION ADAPTER
98461   DMDA75 3" EXTENSION for D688 DRILL BIT
98462   DMDA100 3" EXTENSION for D875 or D938 DRILL BIT

prop65warning
WARNING:

This product can expose you to lead, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.P65warnings.ca.gov.
Parts impacted: 40396, 40403, 40427
