04128 - RS1Q - Ratchet Shears

RS1Q
04128 - RS1Q - Ratchet Shears
Where To Buy »

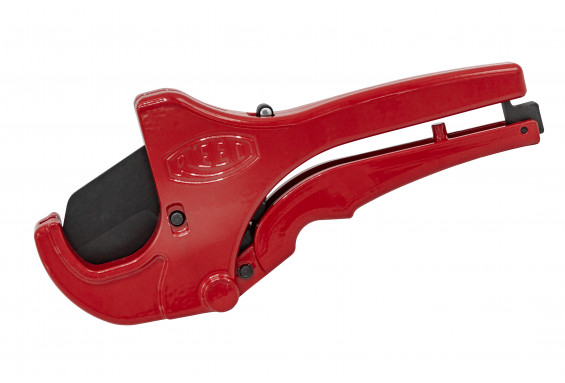

RS1Q - RS1Q by Reed Manufacturing
RS1Q

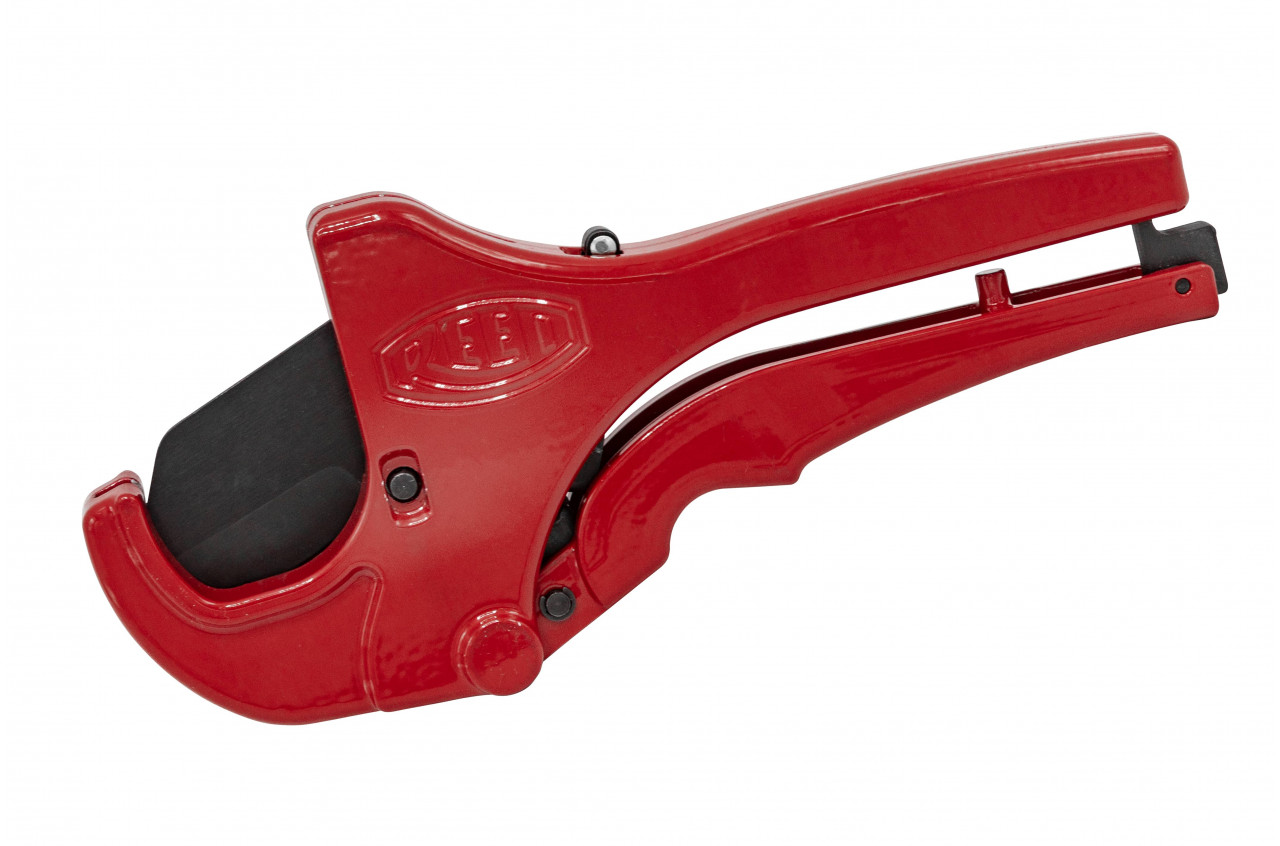

  • RS1Q

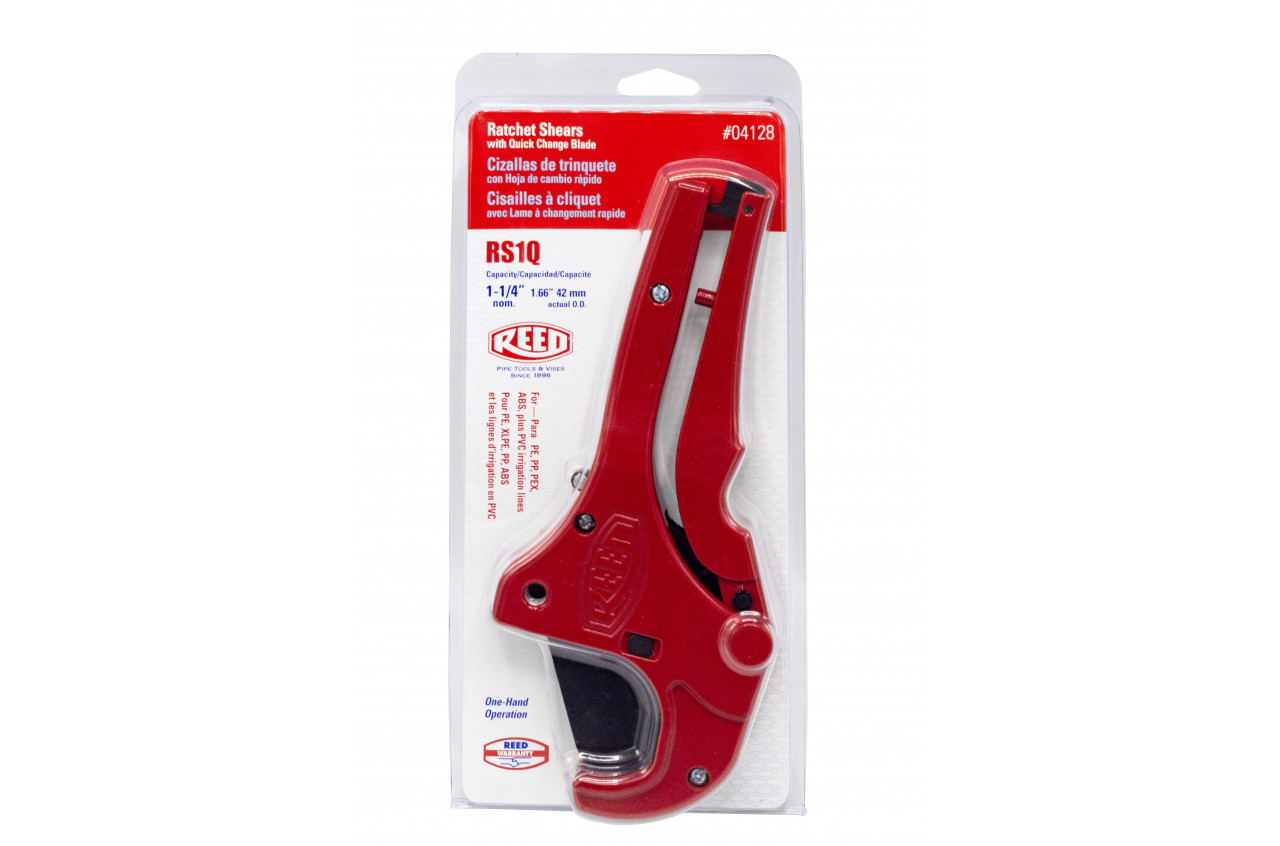

  • RS1Q in Package
Catalog No.: RS1Q
Item Code: 04128
Where To Buy »
Specifications
Capacity
actual O.D. in
1 1/4" nom. IPS
(1.66" actual O.D.)
actual O.D. mm
42
Length
in
8.9
mm
225
Application[1]
For PE, PP, PEX, ABS
plus PVC irrigation lines
Weight
lbs
1
kg
0.45
-

NEW!

[1]

Ratchet Shears are NOT RECOMMENDED to cut PVC or CPVC for high pressure lines or high efficiency vent lines. Instead use REED Quick Release Tubing Cutters.

Features

  • Quick‑change blade (without tools) allows fast replacement or resharpening.
  • No exposed blade when fully open or fully closed, as the sharp edge fits within the tool body.
  • Ideal for cutting PE, PP, PEX, and ABS pipe and tubing, PVC irrigation lines, and up to #10 soft copper tracer wire.
  • Black oxide finish blade opens fully with a push of the lever.
  • Thirteen‑step ratchet action ensures smooth, reliable cuts while using less grip force.
  • Tapped hole on the side allows attachment of a grounding cable.
